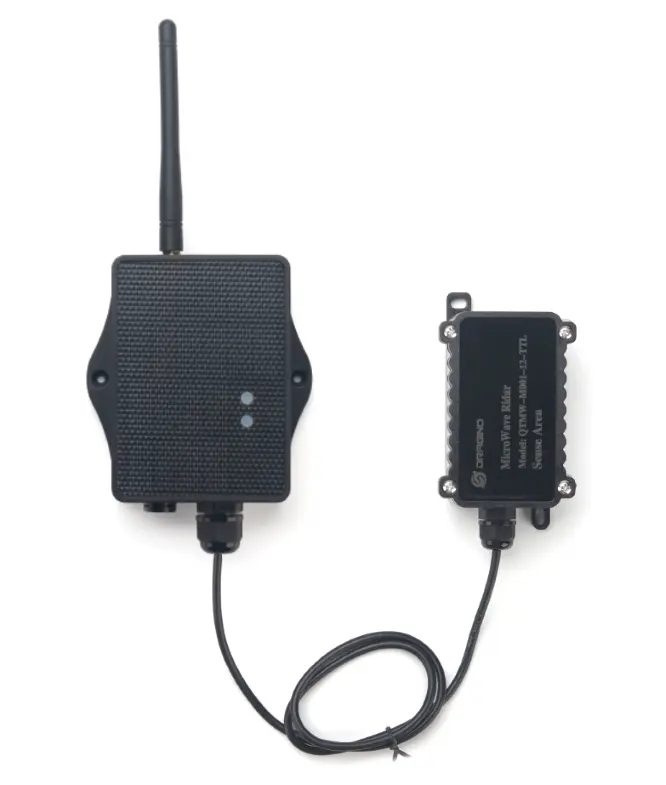

Dragino MDS120-LS Solar LoRaWAN Microwave Radar Distance Sensor

https://www.aiotkart.com/web/image/product.template/17719/image_1920?unique=760a044

Dragino MDS120-LS is a solar-powered LoRaWAN® microwave radar distance sensor designed for remote distance and level monitoring in demanding IoT environments. It uses 60GHz FMCW microwave radar technology to measure distances from 15cm to 1200cm with 1cm resolution and accuracy of ±(2cm + S × 0.3%), where S is the measured distance. Unlike ultrasonic and LiDAR sensing, microwave radar is better suited to environments affected by condensation or dust. The MDS120-LS supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration, periodic uplinks and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with IN865 support, it is suitable for applications such as liquid-level monitoring, sewer monitoring, parking systems, object detection and industrial distance monitoring in India.

₹ 20,400.00 20400.0 INR ₹ 20,400.00

₹ 20,400.00

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 60GHz FMCW Microwave Radar distance detection
  • Measurement range: 15cm to 1200cm
  • Accuracy: ±(2cm + S × 0.3%)
  • Resolution: 1cm
  • Measurement angle: 25° horizontal, 23° vertical
  • Reliable in condensation and dusty environments
  • Ultra-low power consumption
  • Built-in solar panel + 3000mAh Li-ion battery (MDS120-LS variant)
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Periodic uplink transmission
  • Battery level monitoring
  • Pre-loaded LoRaWAN® keys for quick deployment
  • Supports IN865  band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Designed for long-term outdoor deployment

Radar Probe Specifications

  • Measuring Method: FMCW
  • Frequency: 60 GHz
  • Measurement Range: 15 – 1200 cm
  • Accuracy: ±(2cm + S × 0.3%)
  • Resolution: 1 cm
  • Measurement Angle: 25° (H) × 23° (V)
  • Suitable for humid and dusty environments

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865
  • Frequency Range: 862 – 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications (MDS120-LS)

  • Solar Panel: Integrated
  • Battery Type: 3000mAh Li-ion (Rechargeable)
  • Designed for long-term autonomous operation
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino MDS120-LS LoRaWAN® Microwave Radar Sensor is widely used in India for:

  • Water tank and liquid level monitoring
  • Sewer and bottom water level monitoring
  • Industrial automation and process monitoring
  • Parking management systems
  • Object proximity and presence detection
  • Smart waste bin monitoring
  • Robotics and obstacle avoidance
  • Utility and smart city infrastructure
  • Outdoor infrastructure monitoring

You can purchase the Dragino MDS120-LS LoRaWAN® Microwave Radar Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering nationwide shipping and enterprise-level support.

Its 60GHz microwave radar technology ensures accurate distance measurement even in condensation, humid, or dusty conditions where ultrasonic or LiDAR sensors may fail.

The MDS120-LB uses an 8500mAh Li-SOCl₂ battery, while the MDS120-LS includes a solar panel with a 3000mAh rechargeable Li-ion battery for long-term, maintenance-free outdoor operation.
