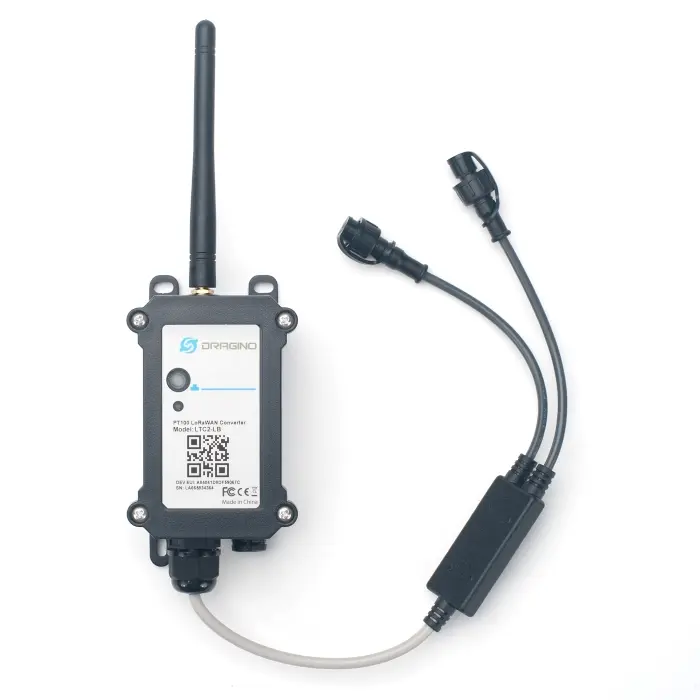

Dragino LTC2-LB LoRaWAN Temperature Transmitter

https://www.aiotkart.com/web/image/product.template/17714/image_1920?unique=ccd21bb

Dragino LTC2-LB is an industrial LoRaWAN® temperature transmitter designed for remote temperature monitoring using 3-wire PT100 probes. It supports up to two independent temperature-monitoring channels, allowing two PT100 sensors to be connected to a single LoRaWAN device. The LTC2-LB supports LoRaWAN 1.0.3 Class A communication, configurable temperature alarms, datalog functionality, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for industrial monitoring, cold chain, food storage and logistics temperature-monitoring applications in India.

₹ 7,300.00 7300.0 INR ₹ 7,300.00

₹ 7,300.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Supports up to 2 PT100 temperature channels (LTC2-LB)
  • Compatible with 3-wire PT100 probes
  • High-accuracy Class A PT100 support
  • Long-range LoRa communication
  • Temperature alarm function
  • Datalog feature for offline data storage
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • 8500mAh Li/SOCl2 industrial battery
  • Ultra-low power consumption

Electrical Characteristics

  • Supply Voltage: Built-in battery, 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C

PT100 Temperature Sensor Compatibility

DR-SI – Standard IP68

  • Installation: Insert
  • Probe Dimension: φ5 × 30mm
  • Measurement Range: -60°C to 200°C
  • Cable Length: 2m
  • Class A PT100

DR-LT – Low Temperature

  • Measurement Range: -196°C to 150°C
  • Class A PT100

DR-HT – High Temperature

  • Measurement Range: -70°C to 450°C
  • Class A PT100

DR-UHT – Ultra High Temperature

  • Measurement Range: -40°C to 600°C
  • Class A PT100

DR-FSA – Food Safety Type

  • Measurement Range: -40°C to 260°C
  • Class A PT100

DR-FT – Flat Type

  • Measurement Range: -60°C to 200°C
  • Class A PT100

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Supported Bands:  IN865
  • Max +22 dBm RF output
  • RX Sensitivity: up to -139 dBm
  • Excellent blocking immunity

Battery Specifications

  • Type: Li/SOCl2 non-rechargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

The Dragino LTC2-LB LoRaWAN® Temperature Sensor is suitable for:

  • Industrial automation and process control
  • Commercial infrastructure temperature monitoring
  • Water systems and utility infrastructure
  • Cold chain logistics and refrigerated storage
  • Food safety compliance monitoring
  • Manufacturing plants and industrial equipment
  • Laboratories and research facilities
  • Campuses and institutional buildings

You can purchase the genuine Dragino LTC2-LB LoRaWAN® Temperature Sensor from AIoTkart®, the Authorized Dragino Distributor in India, with nationwide delivery and bulk project support.

Yes, the LTC2-LB supports LoRaWAN® 1.0.3 Class A protocol and is compatible with standard LoRaWAN® gateways in India, including deployments operating on the IN865 band.

Yes, the LTC2-LB supports up to two PT100 temperature monitoring channels, making it suitable for industrial processes requiring multi-point temperature measurement.

Documents

User Manual
Download

LTC2-LB_Datasheet

Download

LTC2-LB_Firmware

Download
