Dragino LTC2-HT2 LoRaWAN High Temperature Transmitter

Price:

₹ 9,000.00
Dragino LTC2-HT2 LoRaWAN High Temperature Transmitter
  2. Shop
  3. Dragino LTC2-HT2 LoRaWAN High Temperature Transmitter
Dragino LTC2-NA LoRaWAN PT100 Temperature Transmitter
Dragino LTC2-NA LoRaWAN PT100 Temperature Transmitter
₹ 7,300.00
₹ 7,300.00
Akvodrops AD-MJWM DN15 Multi-Jet Brass Water Meter with Pulse Output
Akvodrops AD-MJWM DN15 Multi-Jet Brass Water Meter with Pulse Output
₹ 3,228.00
₹ 3,228.00

Dragino LTC2-HT2 LoRaWAN High Temperature Transmitter

https://www.aiotkart.com/web/image/product.template/17959/image_1920?unique=ecf4585

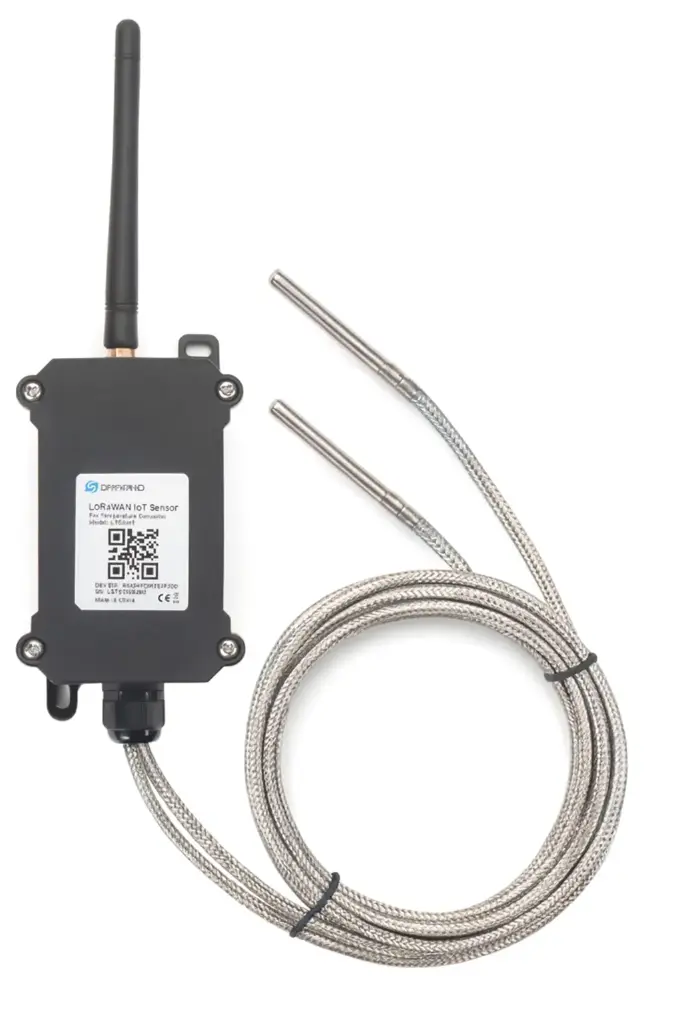

Dragino LTC2-HT2 is an industrial LoRaWAN® temperature transmitter designed for high-temperature monitoring using 3-wire PT100 probes. The LTC2 platform supports up to two independent temperature-monitoring channels and converts PT100 resistance measurements into temperature data for transmission to a LoRaWAN IoT server. Dragino’s compatible DR-HT high-temperature PT100 probe provides a -70°C to 450°C measurement range, Class A accuracy specification and a 3-meter cable for demanding industrial applications. The LTC2 supports LoRaWAN 1.0.3 Class A communication, LoRaWAN or UART configuration, console-based firmware upgrades and battery monitoring. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for industrial process, machinery and high-temperature monitoring deployments in India.

₹ 9,000.00 9000.0 INR ₹ 9,000.00

₹ 9,000.00

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A compliant
  • Supports up to 2 PT100 temperature channels
  • 3-wire PT100 probe support (pre-loaded or third-party)
  • Dual 16-bit ADCs with factory calibration
  • High-accuracy resistance-to-temperature conversion
  • Configuration via LoRaWAN® downlink or UART
  • Firmware upgrade via console
  • 8500mAh Li-SOCl₂ battery (2–10 years operation*)
  • Battery level monitoring and uplink reporting
  • Wall-mountable industrial enclosure
  • Pre-loaded unique LoRaWAN® keys for auto-registration

*Battery life depends on transmission frequency and network coverage.

LoRaWAN® Specifications

  • Protocol: LoRaWAN® v1.0.3 Class A
  • Activation: OTAA (pre-loaded unique keys)
  • Configuration: LoRaWAN® Downlink or UART
  • Firmware Upgrade: Console-based

Measurement Specifications

  • Temperature Channels: Up to 2
  • Probe Type: 3-wire PT100
  • ADC: Dual internal 16-bit
  • Calibration: Factory calibrated
  • Measurement Type: Resistance-to-temperature conversion

Power Specifications

  • Battery Type: 8500mAh Li-SOCl₂
  • Expected Battery Life: 2–10 years

Mechanical Specifications

  • Industrial-grade enclosure
  • Wall mountable
  • Designed for harsh industrial environments

The Dragino LTC2-HT2 is ideal for:

  • Cold chain monitoring systems
  • Food safety temperature tracking
  • Logistics and warehouse temperature monitoring
  • Industrial process monitoring
  • Pharmaceutical storage facilities
  • Environmental and infrastructure monitoring

The LTC2-HT2 supports up to two independent 3-wire PT100 probes for dual-channel monitoring.

Yes, the device supports standard 3-wire PT100 probes, including both Dragino pre-loaded probes and compatible third-party probes.

Yes, its high accuracy, long battery life, and reliable LoRaWAN® connectivity make it ideal for cold chain, food safety, and pharmaceutical monitoring.

Documents

User Manual
Download

LTC2_Datasheet

Download

LTC2_Firmware

Download
