Dragino LHT65S-DS LoRaWAN Door Sensor

https://www.aiotkart.com/web/image/product.template/17704/image_1920?unique=b14a653

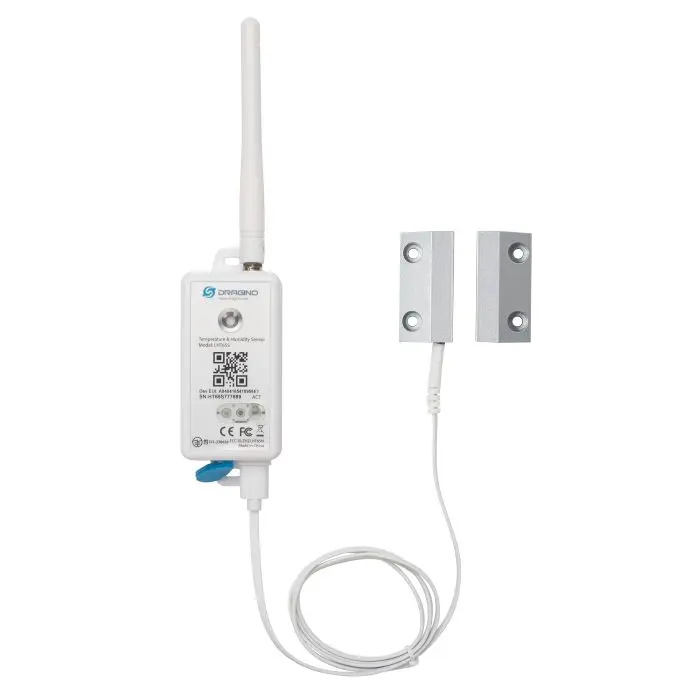

Dragino LHT65S-DS is a LoRaWAN® door sensor designed for wireless open/close monitoring in buildings, cabinets, equipment enclosures and other IoT applications. It combines a 1-meter aluminum-alloy magnetic door sensor with built-in temperature and humidity sensing, enabling door-status and environmental monitoring from a single device. The external magnetic sensor provides an approximately 3cm detection distance, while the LHT65S-DS supports LoRaWAN 1.0.3 Class A communication, AT-command configuration, remote parameter configuration through LoRaWAN downlinks and firmware upgrades through its program port. Powered by a built-in 2400mAh non-rechargeable battery and supplied with an external LoRa antenna, it is available with IN865 frequency support for deployments in India.

₹ 5,100.00 5100.0 INR ₹ 5,100.00

₹ 5,100.00

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A compliant
  • Built-in temperature and humidity sensor
  • External 1-meter aluminum alloy door sensor
  • Long-range LPWAN communication
  • Ultra-low power consumption design
  • Built-in 2400mAh non-rechargeable battery
  • Up to 10 years battery life (application dependent)
  • Tri-color LED status indicator
  • AT Commands for configuration
  • Remote configuration via LoRaWAN® downlink
  • Firmware upgrade via program port
  • Compatible with standard LoRaWAN® gateways
  • External LoRa antenna included (LHT65S-DS variant)

Built-in Temperature Sensor

  • Resolution: 0.01 °C
  • Accuracy: Typical ±0.3 °C
  • Long Term Drift: < 0.02 °C/year
  • Operating Range: -40 °C to 80 °C

Built-in Humidity Sensor

  • Resolution: 0.04 %RH
  • Accuracy: Typical ±3 %RH
  • Long Term Drift: < 0.25 %RH/year
  • Operating Range: 0 to 96 %RH

External Door Sensor

  • Detection Distance: ~3 cm
  • Material: Aluminum Alloy
  • Cable Length: 1 meter

Device Specifications

  • Model: Dragino LHT65S-DS
  • Protocol: LoRaWAN® Class A
  • Frequency Bands: IN865
  • Battery: 2400mAh non-chargeable
  • Device Size: 9.5 x 4 x 2.8 cm
  • Device Weight: 105 g

Package Includes

  • 1 x LHT65S-DS LoRaWAN® Door Sensor
  • 1 x External LoRa Antenna

The Dragino LHT65S-DS LoRaWAN® Door Sensor is suitable for:

  • Industrial automation and facility access monitoring
  • Commercial infrastructure and smart building management
  • Irrigation systems and agricultural storage
  • Smart metering cabinets and utility enclosures
  • Cold chain and temperature-sensitive storage monitoring
  • Manufacturing units and warehouse facilities
  • Smart city infrastructure projects
  • Campuses and institutional building automation

You can purchase the genuine Dragino LHT65S-DS LoRaWAN® Door Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering secure ordering and nationwide delivery.

Yes, the LHT65S-DS is fully compatible with LoRaWAN® v1.0.3 Class A protocol and works with standard LoRaWAN® gateways for industrial and commercial IoT deployments.

The device provides door open/close status along with built-in temperature and humidity measurements, making it suitable for access monitoring and environmental tracking.
