Dragino LHT65N-PIR LoRaWAN Temperature, Humidity & PIR Motion Sensor

Price:

₹ 4,500.00
  2. Shop
  3. Dragino LHT65N-PIR LoRaWAN Temperature, Humidity & PIR Motion Sensor
Dragino LHT65N-NE117 LoRaWAN Temperature & Humidity Sensor
Dragino LHT65N-NE117 LoRaWAN Temperature & Humidity Sensor
₹ 6,100.00
₹ 6,100.00
Dragino LHT65S LoRaWAN Temperature & Humidity Sensor
Dragino LHT65S LoRaWAN Temperature & Humidity Sensor
₹ 4,600.00
₹ 4,600.00

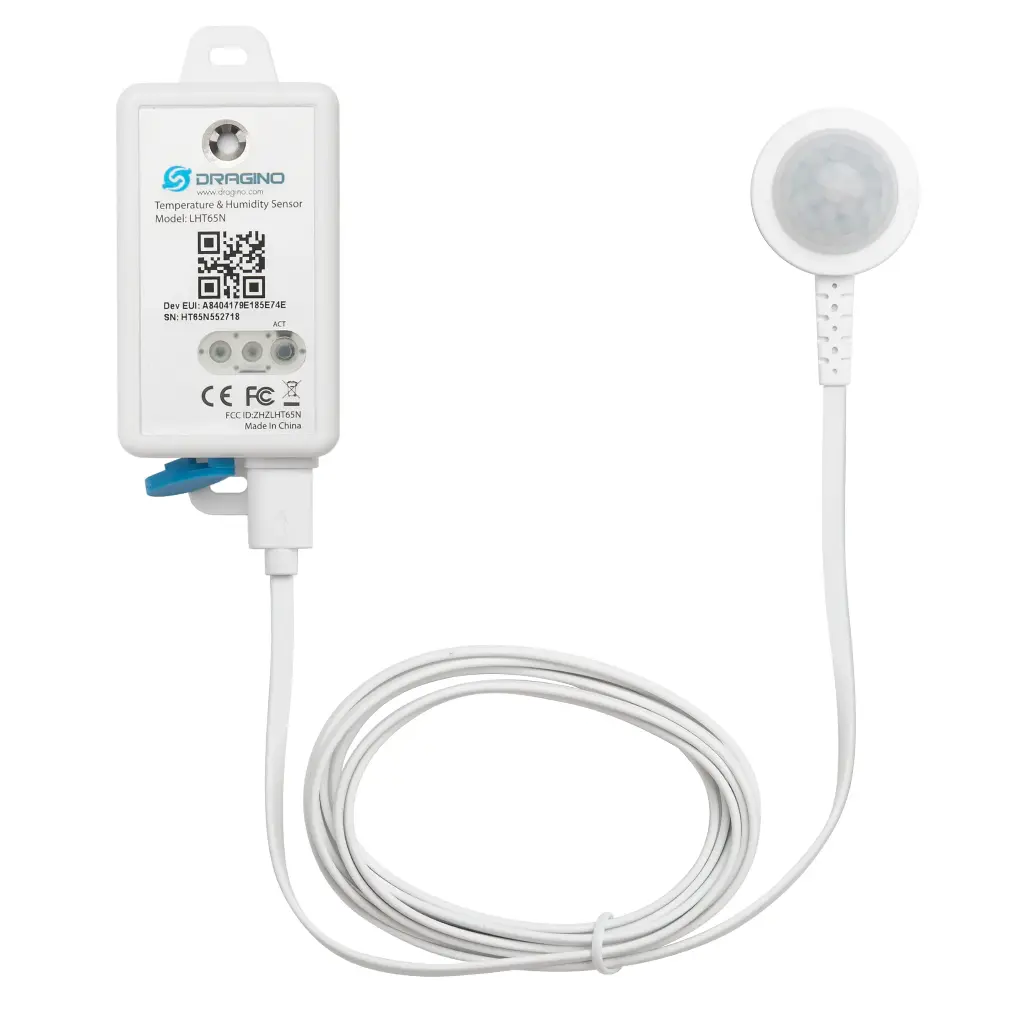

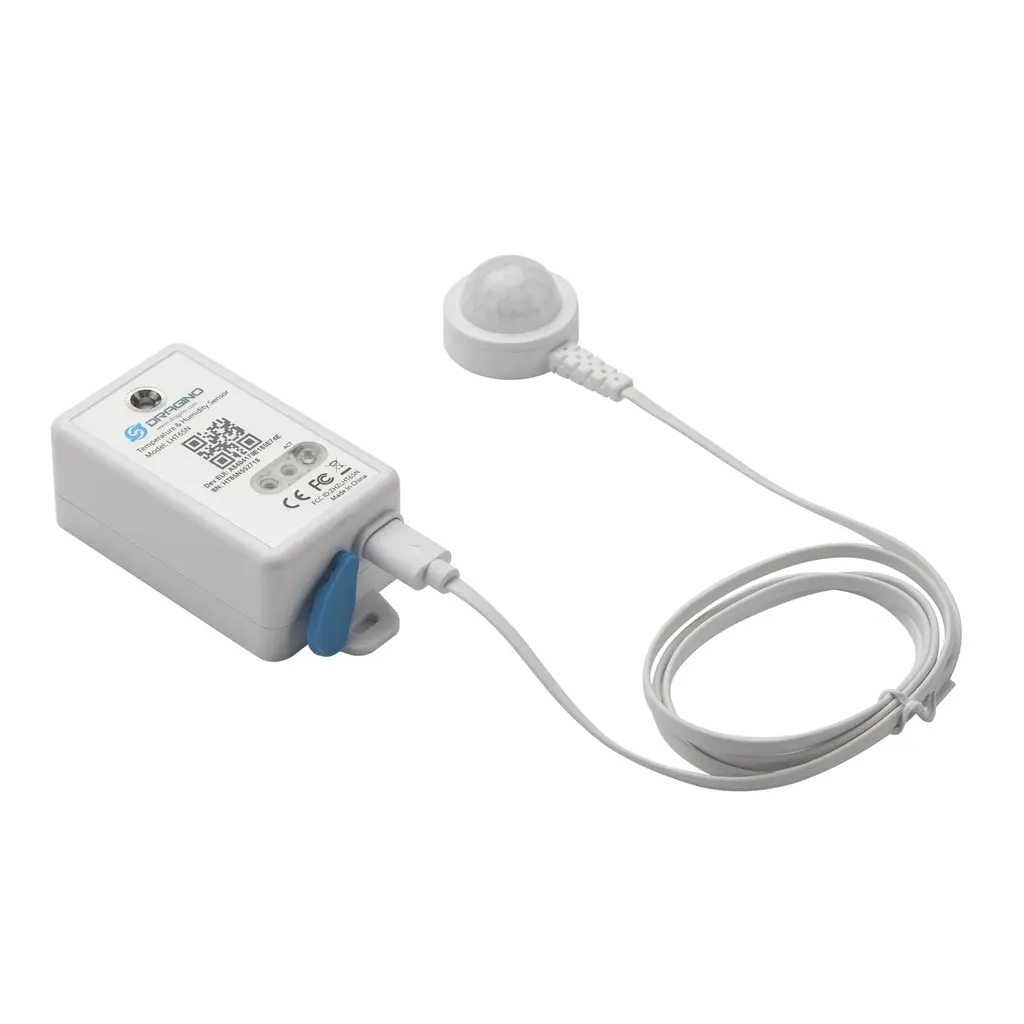

Dragino LHT65N-PIR LoRaWAN Temperature, Humidity & PIR Motion Sensor

https://www.aiotkart.com/web/image/product.template/17700/image_1920?unique=4e8ec00

Dragino LHT65N-PIR is a LoRaWAN® temperature, humidity and PIR motion sensor designed for wireless environmental and activity monitoring in buildings, security systems, industrial facilities and smart automation applications. It combines built-in temperature and humidity sensing with an external RDB223 PIR probe that detects motion activity over a stable range of approximately 0 to 3 meters through a 1-meter cable. The LHT65N-PIR supports LoRaWAN 1.0.3 Class A communication, remote parameter configuration through LoRaWAN downlinks, wireless OTA firmware updates and firmware upgrades through its program port. Powered by a built-in 2400mAh non-rechargeable battery and available with IN865 frequency support, it is suitable for long-term wireless occupancy, motion and environmental monitoring deployments in India.

₹ 4,500.00 4500.0 INR ₹ 4,500.00

₹ 4,500.00

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A compliant
  • Built-in Temperature & Humidity sensor
  • External PIR motion sensor (RDB223 based)
  • Motion detection range up to 3 meters
  • Ultra-long-range LoRa communication
  • High interference immunity
  • Built-in 2400mAh battery (up to 5 years*)
  • Wireless configuration via LoRaWAN® downlink
  • OTA firmware update support
  • Firmware upgradeable via program port
  • Tri-color LED status indicator
  • Supports IN865 band

Built-in Temperature Sensor

  • Resolution: 0.01 °C
  • Accuracy: ±0.3 °C (typical)
  • Long Term Drift: < 0.02 °C/year
  • Operating Range: -40 °C to 85 °C

Built-in Humidity Sensor

  • Resolution: 0.04 %RH
  • Accuracy: ±3 %RH (typical)
  • Long Term Drift: < 0.25 RH/year
  • Operating Range: 0 to 96 %RH

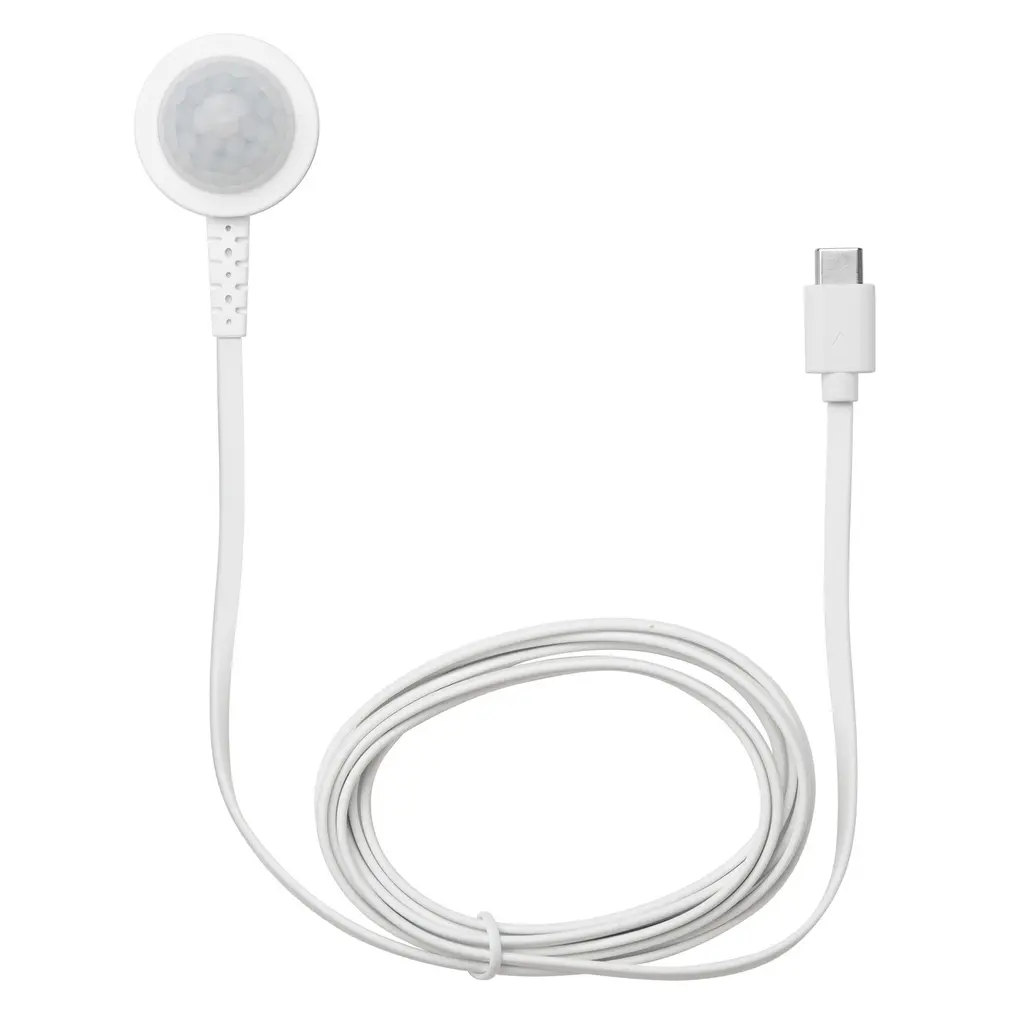

External PIR Sensor

  • Based on RDB223 sensor
  • Cable Length: 1 meter
  • Stable detection distance: 0–3 meters

LoRaWAN® Specifications

  • Protocol: LoRaWAN® Class A
  • Frequency Bands: IN865
  • Remote AT command configuration
  • OTA firmware upgrade support
  • Compatible with standard LoRaWAN® gateways

Power

  • Built-in 2400mAh non-rechargeable battery
  • Battery life up to 5 years (based on transmission interval)

Physical Specifications

  • Device Size: 9.5 x 4 x 2.8 cm
  • Device Weight: 105 g
  • Package Size: 14.5 x 8 x 5 cm
  • Package Weight: 170 g

The Dragino LHT65N-PIR LoRaWAN® Temperature, Humidity & PIR Motion Sensor is suitable for:

  • Industrial automation and facility monitoring
  • Commercial infrastructure and smart offices
  • Water systems control rooms and pump stations
  • Cold chain warehouses and storage areas
  • Manufacturing plants and production zones
  • Utilities and remote asset monitoring
  • Infrastructure and smart city deployments
  • Campuses, hospitals, and institutional buildings
  • Building management and occupancy-based automation

You can purchase the genuine Dragino LHT65N-PIR LoRaWAN® Temperature, Humidity & PIR Motion Sensor from AIoTkart®, the Authorized Dragino Distributor in India, with nationwide delivery and bulk project support.

Yes, the sensor supports LoRaWAN® v1.0.3 Class A protocol and is fully compatible with standard LoRaWAN® gateways used in industrial, commercial, and infrastructure IoT deployments across India.

Yes, the integrated temperature and humidity monitoring combined with PIR motion detection makes it ideal for building automation, occupancy monitoring, security systems, and energy optimization applications.
