Dragino LHT65N-E5 LoRaWAN Temperature, Humidity & Illuminance Sensor

Price:

₹ 4,840.00
  2. Shop
  3. Dragino LHT65N-E5 LoRaWAN Temperature, Humidity & Illuminance Sensor
Dragino LHT65N-E3 LoRaWAN Temperature & Humidity Sensor
Dragino LHT65N-E3 LoRaWAN Temperature & Humidity Sensor
₹ 4,500.00
₹ 4,500.00
Dragino LHT65N-NE117 LoRaWAN Temperature & Humidity Sensor
Dragino LHT65N-NE117 LoRaWAN Temperature & Humidity Sensor
₹ 6,100.00
₹ 6,100.00

Dragino LHT65N-E5 LoRaWAN Temperature, Humidity & Illuminance Sensor

https://www.aiotkart.com/web/image/product.template/17698/image_1920?unique=b1bca6f

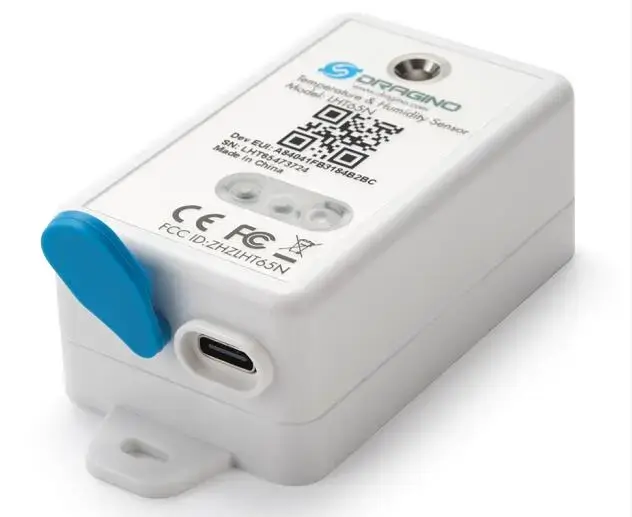

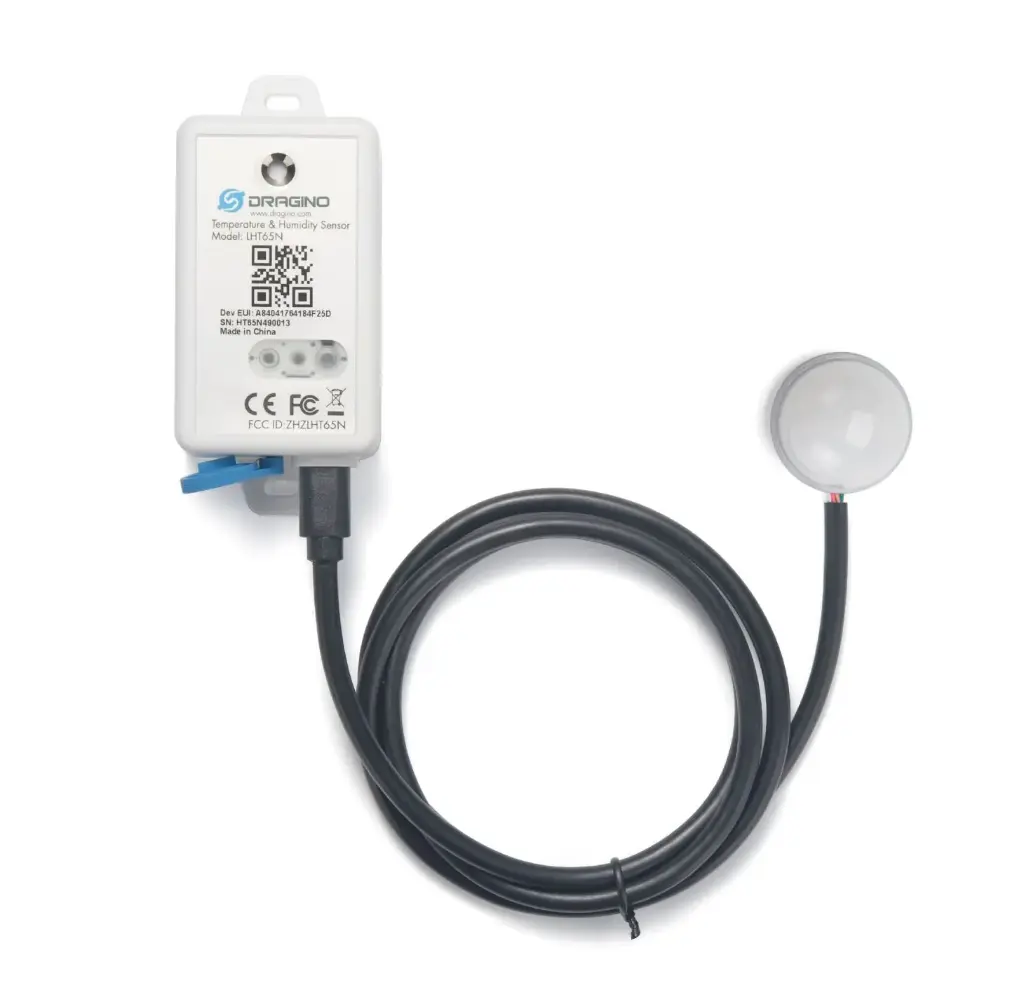

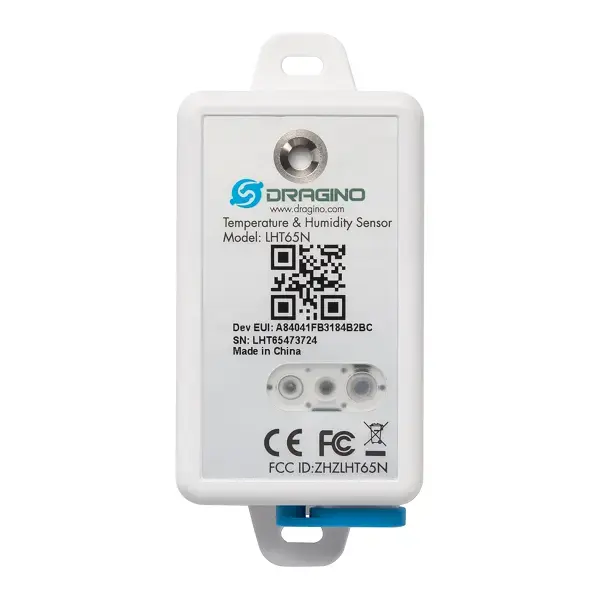

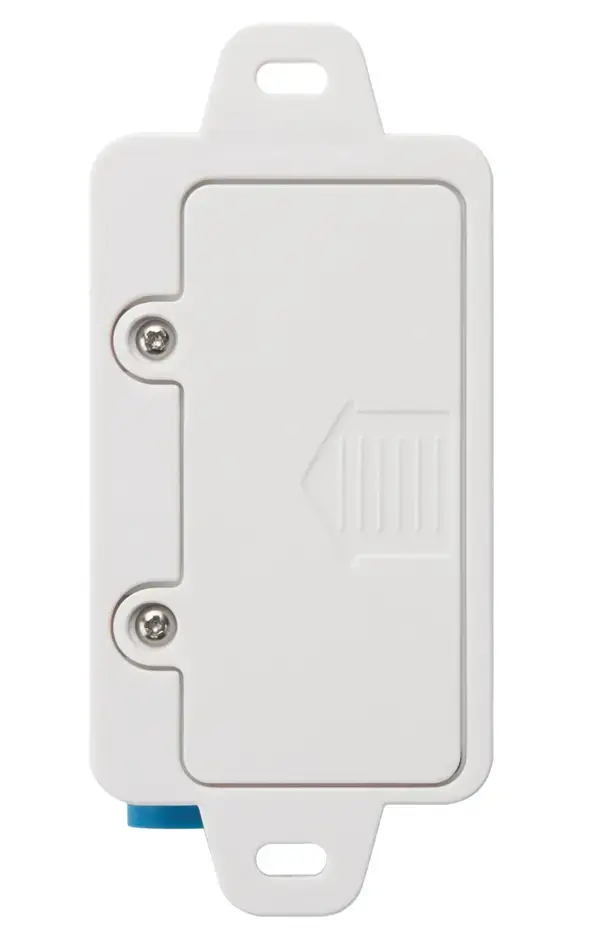

Dragino LHT65N-E5 is a LoRaWAN® temperature, humidity and illuminance sensor designed for wireless environmental monitoring in buildings, industrial facilities, smart agriculture and IoT applications. It combines built-in temperature and humidity sensing with an external BH1750 illuminance sensor connected by a 50cm cable. The illuminance sensor measures light levels from 0 to 65,535 lux with 1 lux resolution, while the built-in temperature sensor covers -40°C to 80°C and the humidity sensor covers 0 to 96% RH. The LHT65N-E5 supports LoRaWAN 1.0.3 Class A communication, remote parameter configuration through LoRaWAN downlinks and firmware upgrades through its program port. Powered by a built-in 2400mAh non-rechargeable battery and available with IN865 frequency support, it is suitable for long-term environmental and light-level monitoring deployments in India.

₹ 4,840.00 4840.0 INR ₹ 4,840.00

₹ 4,840.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A compliant
  • Built-in Temperature & Humidity sensor
  • External Illuminance sensor (BH1750 based)
  • Ultra-long range wireless communication
  • Built-in 2400mAh battery (up to 10+ years*)
  • AT command configuration
  • Remote configuration via LoRaWAN® downlink
  • Firmware upgrade via program port
  • Tri-color LED status indicator
  • Supports multiple global LoRaWAN® frequency bands

*Battery life depends on transmission interval and configuration.

Built-in Temperature Sensor

  • Resolution: 0.01 °C
  • Accuracy: Typical ±0.3 °C
  • Long-term drift: < 0.02 °C/year
  • Operating range: -40°C to 80°C

Built-in Humidity Sensor

  • Resolution: 0.04 %RH
  • Accuracy: Typical ±3 %RH
  • Long-term drift: < 0.25 %RH/year
  • Operating range: 0 to 96 %RH

External Illuminance Sensor

  • Based on: BH1750 digital light sensor
  • Cable Length: 50 cm
  • Resolution: 1 lux
  • Measurement Range: 0 to 65535 lux
  • Operating Range: -40°C to 85°C

LoRa Specifications

  • Protocol: LoRaWAN® Class A
  • Frequency Bands: IN865
  • Compatible with standard LoRaWAN® gateways

Power

  • Built-in 2400mAh non-rechargeable battery
  • Long-term ultra-low power design

Mechanical

  • Device Size: 9.5 × 4 × 2.8 cm
  • Device Weight: 105g
  • Package Size: 14.5 × 8 × 5 cm
  • Package Weight: 170g

The Dragino LHT65N-E5 is suitable for:

  • Smart agriculture and greenhouse monitoring
  • Irrigation system automation
  • Solar plant and light intensity monitoring
  • Building automation and facility management
  • Industrial environmental monitoring
  • Smart city infrastructure projects
  • Security and alarm systems

You can purchase the Dragino LHT65N-E5 from AIoTkart® with nationwide delivery and IoT deployment support.

It measures temperature, humidity, and illuminance (lux) using a built-in environmental sensor and an external light sensor.

The built-in 2400mAh battery can operate for over 10 years depending on uplink frequency and configuration.

Documents

User Manual
Download

LHT65N-E5_Datasheet

Download

LHT65N-E5_Firmware

Download
