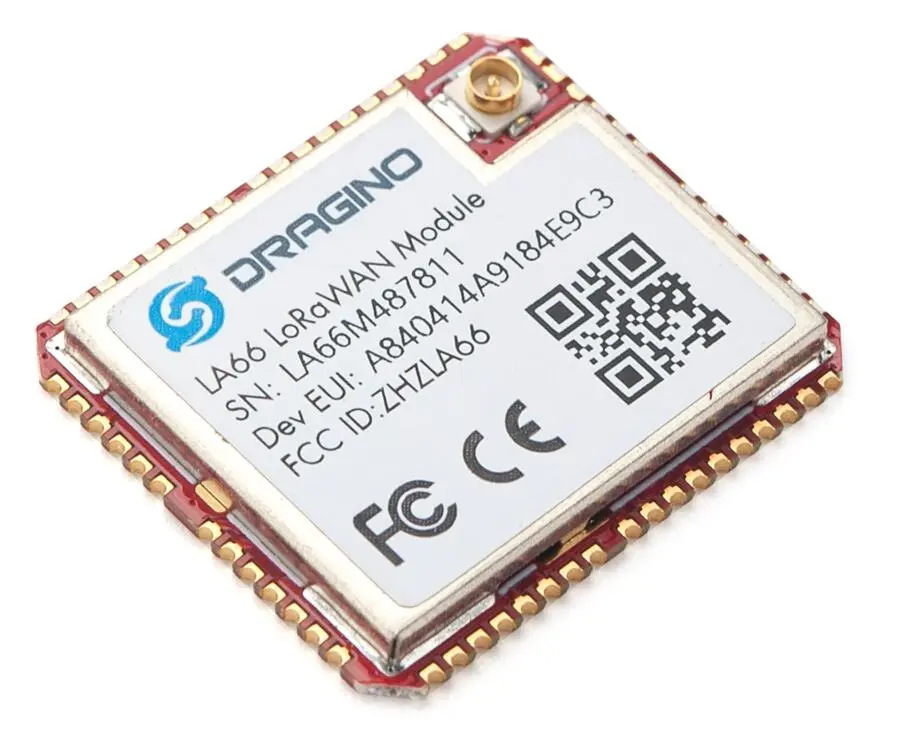

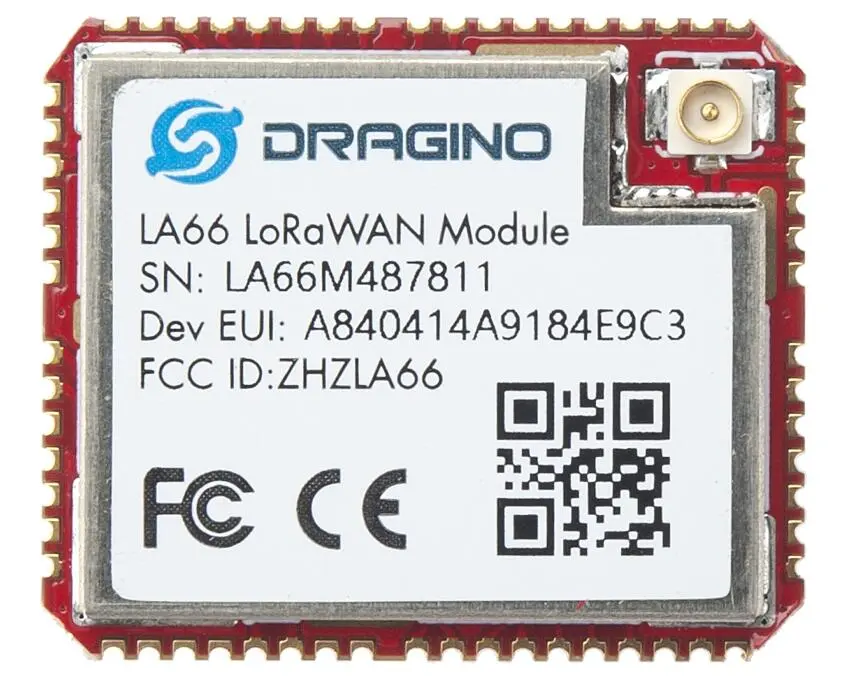

Dragino LA66 LoRaWAN Module

https://www.aiotkart.com/web/image/product.template/17681/image_1920?unique=7977f91

Dragino LA66 is a compact LoRaWAN® module designed for developers and OEMs building long-range, low-power IoT devices and LoRaWAN end nodes. It comes with a mature LoRaWAN v1.0.3 stack and also supports open-source peer-to-peer LoRa communication for non-LoRaWAN applications. An external MCU can control the LA66 using AT commands through its UART-TTL interface, while firmware can be upgraded through UART. The module includes a TCXO crystal for stable RF performance, SMD antenna pad and I-PEX antenna connector, world-unique OTAA keys, and support for multiple regional bands including IN865 for India.

₹ 1,406.00 1406.0 INR ₹ 1,406.00

₹ 1,406.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • Supports LoRaWAN® v1.0.3 protocol
  • Compatible with IN865  band
  • Ultra-long RF communication range
  • Very low power consumption (<4uA sleep)
  • World-unique OTAA keys for secure device registration
  • Supports peer-to-peer LoRa protocol
  • AT command interface via UART-TTL
  • Firmware upgradeable via UART
  • TCXO crystal for stable RF performance in extreme temperatures
  • SMD antenna pad and I-PEX antenna connector options

Processor & Memory

  • CPU: 32-bit 48 MHz
  • Flash: 256KB
  • RAM: 64KB

Electrical Characteristics

  • Input Power Range: 1.8V ~ 3.7V
  • I/O Voltage: 3.3V
  • Power Consumption: <4uA (Sleep Mode)

RF & LoRa Specifications

  • Frequency Range: 150 MHz ~ 960 MHz
  • Maximum RF Output: +22 dBm
  • Receiver Sensitivity: -148 dBm
  • LoRa Rx Current: <9 mA
  • LoRa Tx Current: <90 mA @ +17 dBm, 108 mA @ +22 dBm
  • Supports LoRaWAN® v1.0.3
  • Supports Peer-to-Peer LoRa

Environmental

  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -55°C to +125°C
  • Operating Humidity: 10 ~ 95% (Non-Condensing)
  • Storage Humidity: 5 ~ 95% (Non-Condensing)

The Dragino LA66 LoRaWAN® Module is ideal for:

  • Industrial automation and embedded IoT device design
  • Commercial infrastructure monitoring systems
  • Water systems and remote telemetry solutions
  • Cold chain tracking devices
  • Manufacturing sensor integration
  • Smart utilities and energy monitoring devices
  • Infrastructure and smart city deployments
  • Campuses and institutional IoT research projects
  • Custom LoRaWAN® end device development

You can purchase the genuine Dragino LA66 LoRaWAN® Module from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India delivery and bulk supply support.

Yes, the LA66 supports multiple LoRaWAN® frequency bands including IN865, making it suitable for LoRaWAN® deployments across India.

Yes, the LA66 is designed for embedded integration and supports AT commands via UART-TTL, making it ideal for OEMs and developers building custom LoRaWAN®-enabled devices.
