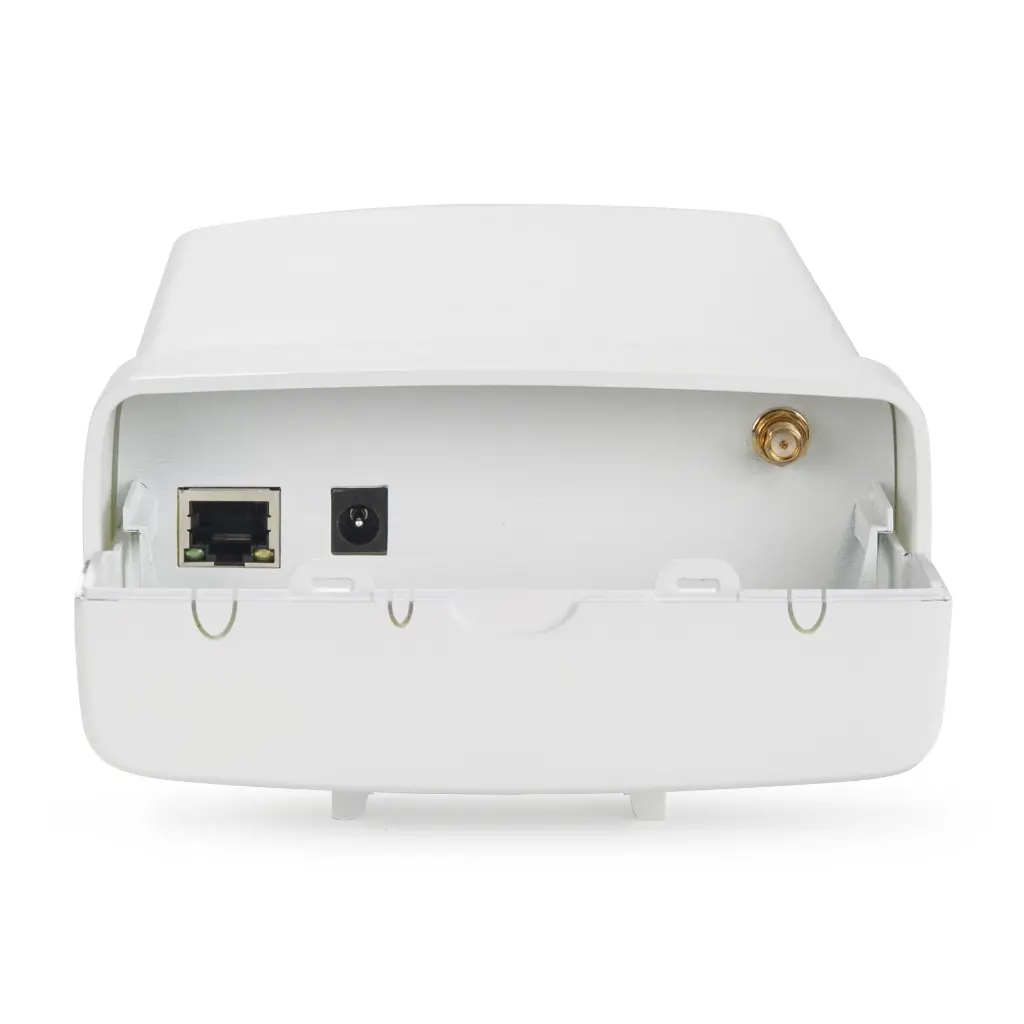

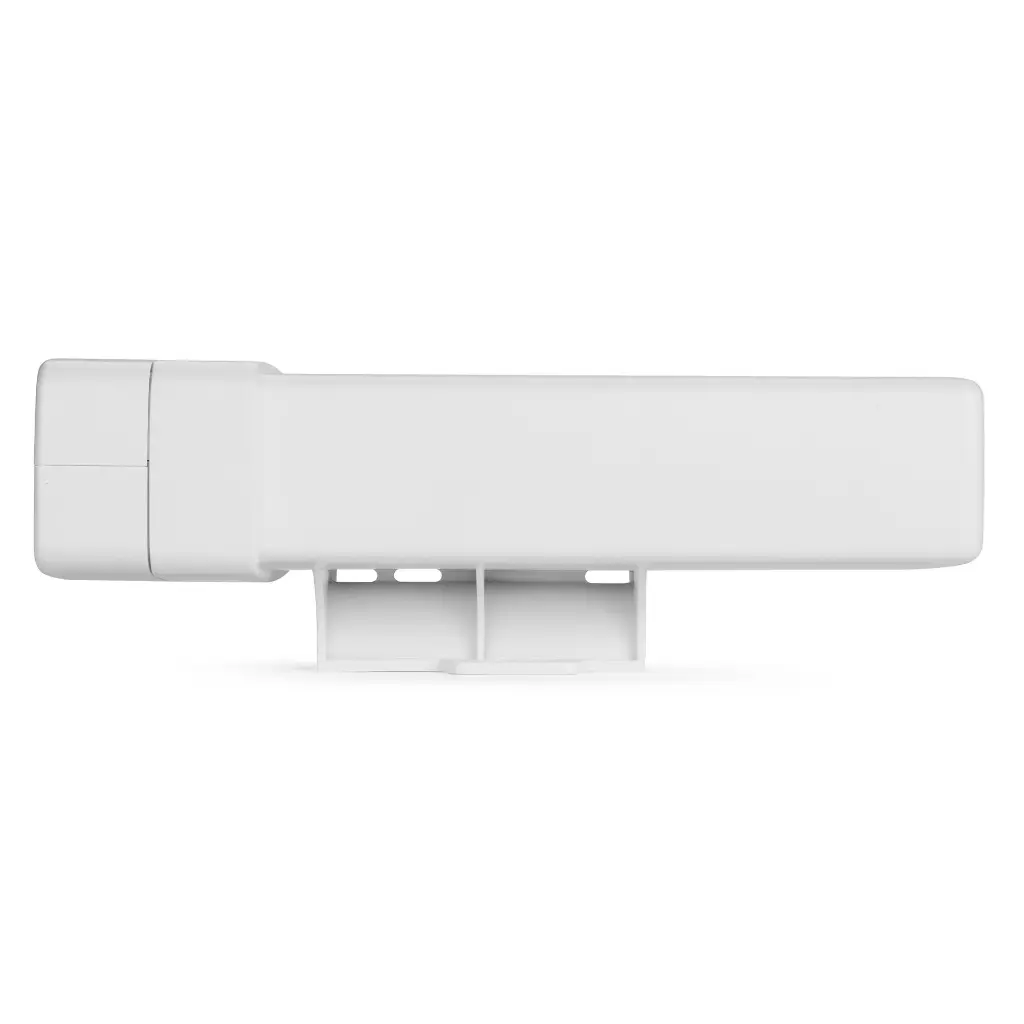

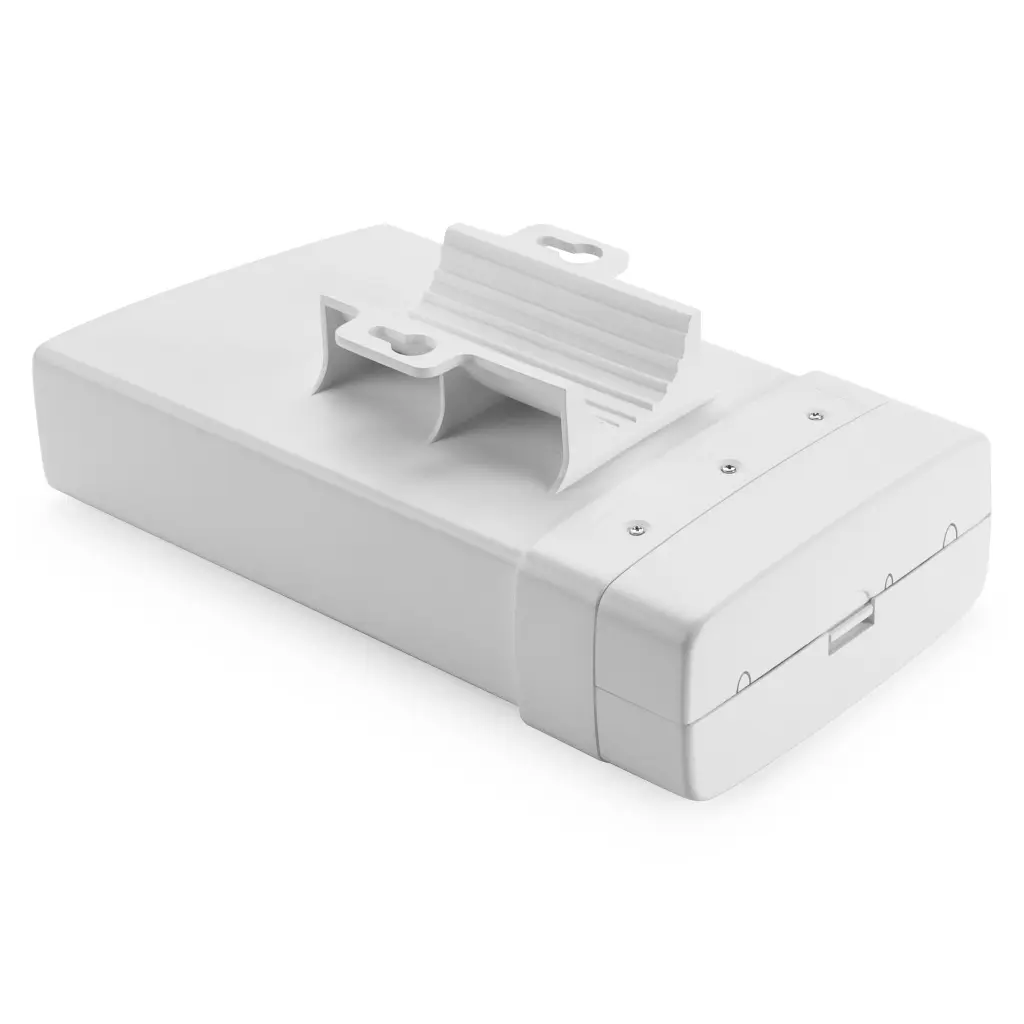

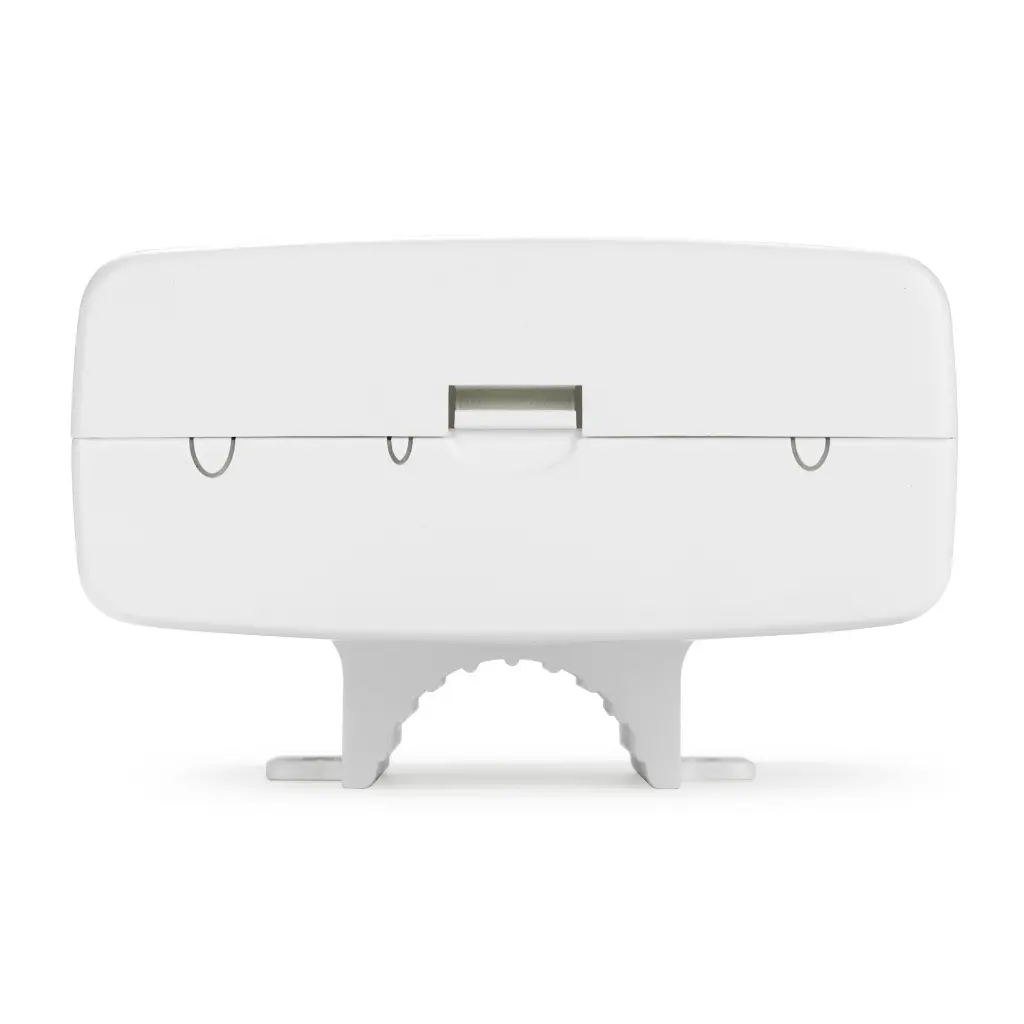

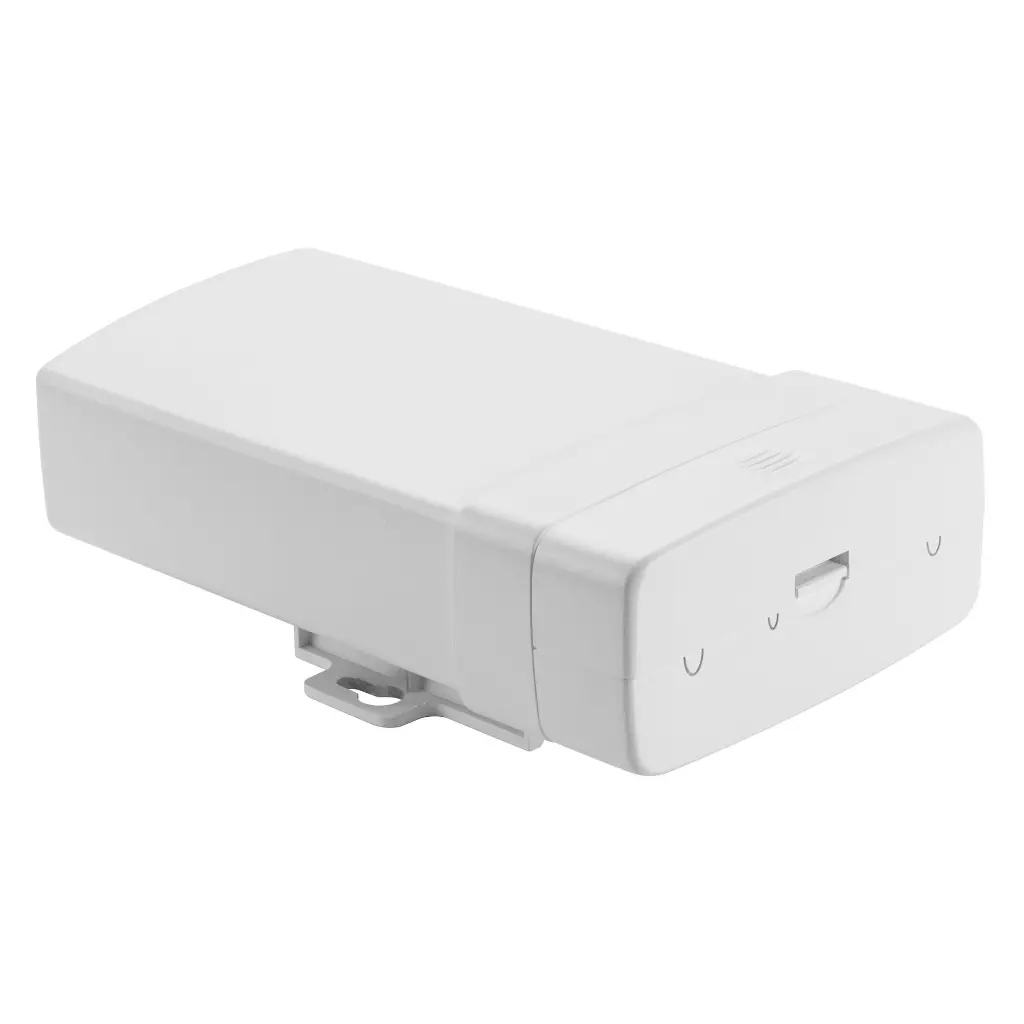

Dragino HP0D Outdoor LoRaWAN Gateway & Full Hotspot

https://www.aiotkart.com/web/image/product.template/17677/image_1920?unique=40f561c

Dragino HP0D is an outdoor LoRaWAN® gateway and Full Hotspot designed to connect LoRaWAN devices to IP networks through Ethernet, WiFi and optional cellular connectivity. It uses an SX1302 concentrator with dual SX1250 radio front ends and provides 10 programmable parallel demodulation paths for multi-channel LoRaWAN communication. The HP0D runs an open-source Linux system and supports Semtech UDP Packet Forwarder, LoRaWAN Station, web and SSH management, remote monitoring, firmware OTA updates and IEEE 802.3af PoE. It is also approved as a Helium Full Hotspot and can connect to a Helium LoRaWAN server together with a secondary LoRaWAN server. The HP0D-868 version supports IN865, making it suitable for outdoor LoRaWAN gateway deployments in India.

₹ 45,000.00 45000.0 INR ₹ 45,000.00

₹ 45,000.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • Outdoor industrial LoRaWAN® Gateway
  • Helium Full Hotspot approved
  • Built-in ATECC608 secure encryption chip
  • Supports Helium miner feature
  • Connect to up to 2 LoRaWAN® servers simultaneously
  • Prepaid $40 onboarding + $10 location assertion
  • Open-source Linux operating system
  • Raspberry Pi 4 (2GB / 4GB / 8GB RAM – shipped randomly)
  • Managed via Web GUI & SSH over Internet
  • Supports Semtech UDP Packet Forwarder
  • Supports LoRaWAN® Station
  • 802.3af PoE support
  • Firmware OTA upgrade
  • External fiberglass LoRa antenna
  • Lightning protection
  • Remote monitoring support
  • Remote.it remote management integration

System

  • Open-source Linux OS
  • Raspberry Pi 4 platform
  • RAM: 2GB / 4GB / 8GB (random shipment)

Connectivity

  • LoRaWAN® backhaul via Ethernet
  • WiFi connectivity
  • Optional 3G / 4G support
  • Supports dual LoRaWAN® server connections

Helium Support

  • Helium Full Hotspot approved
  • Built-in ATECC608 encryption chip
  • Prepaid onboarding and location fees
  • Ready for QR-based onboarding

Network Compatibility

  • Pre-configured LoRaWAN® frequency bands for multiple countries
  • Customizable frequency band configuration
  • Fully LoRaWAN® protocol compliant

Power & Protection

  • 802.3af PoE support
  • 12V 2A adapter included
  • Lightning protection
  • Designed for outdoor installation

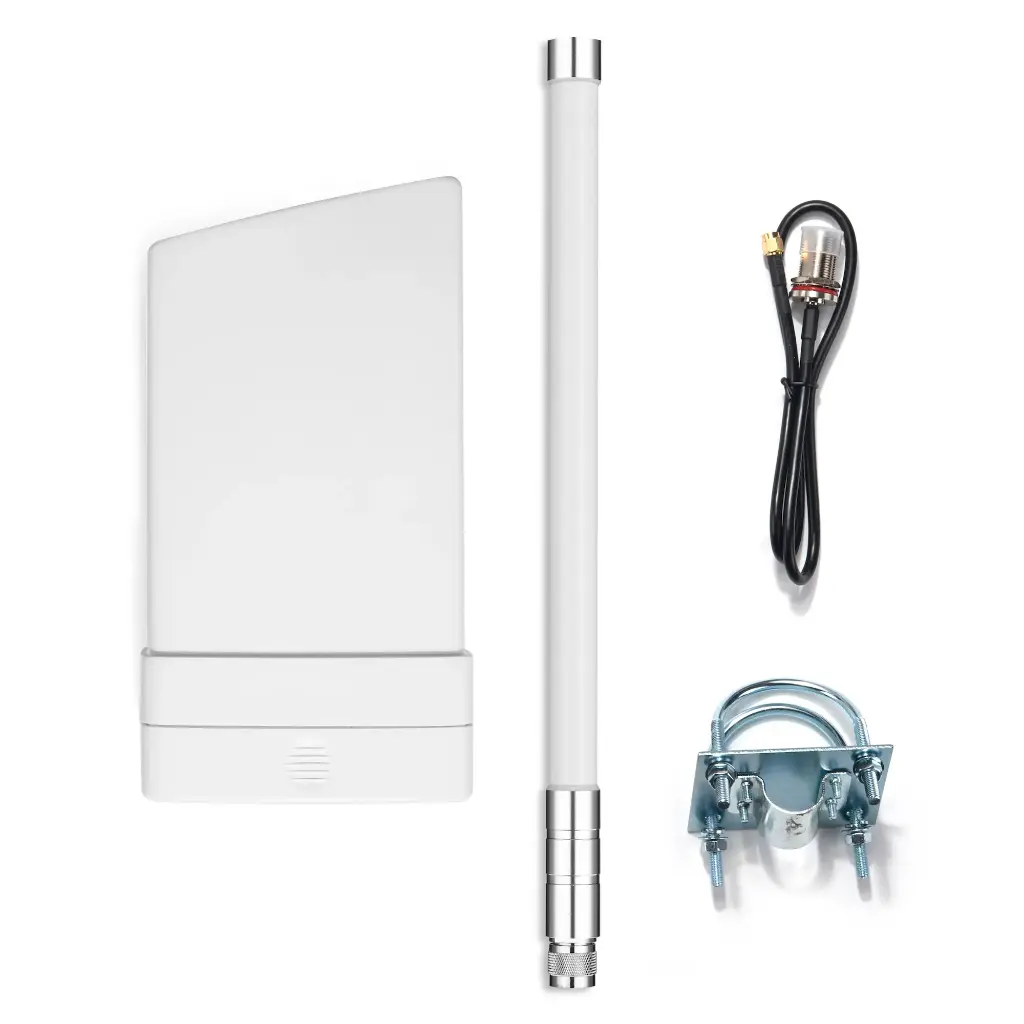

Package Includes

  • 1 × HP0D Outdoor LoRaWAN® Gateway (Full Hotspot)
  • 1 × External Fiberglass LoRa Antenna
  • 1 × 12V 2A Power Adapter
  • Environmental Protection Package

Dimensions & Weight

  • Package Size: 48 × 19 × 13 cm
  • Weight per unit: 1.7 kg

The HP0D Outdoor LoRaWAN® Gateway is ideal for:

  • Smart city IoT deployments
  • Industrial IoT infrastructure
  • Smart agriculture projects
  • Water and utility monitoring networks
  • Helium mining + private LoRaWAN® network integration
  • Campus-wide LoRaWAN® coverage
  • EPC and large-scale IoT projects

Yes. The HP0D supports Helium Full Hotspot functionality and can simultaneously connect to up to two LoRaWAN® servers. This allows you to use it for Helium mining while also running your own private or enterprise LoRaWAN® network.

Yes. Dragino has already prepaid the $40 onboarding cost and $10 location assertion fee. You only need to enter your HNT wallet address and scan the QR code to activate the device upon installation.

Yes. The HP0D is designed for outdoor installations and includes lightning protection, PoE support (802.3af), and an external fiberglass antenna. It supports standard LoRaWAN® frequency bands, including those suitable for Indian deployments, and can be managed remotely via Web GUI or SSH.

Documents

HP0D_Datasheet

Download
