Dragino DS03A-LS Solar LoRaWAN Open/Close Door Sensor

https://www.aiotkart.com/web/image/product.template/17675/image_1920?unique=f50ce5c

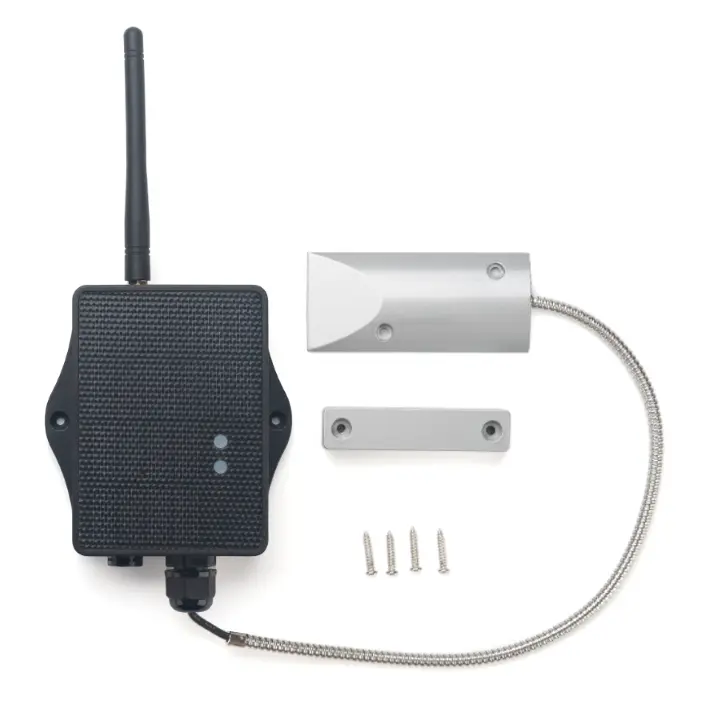

Dragino DS03A-LS is a solar-powered LoRaWAN® door sensor designed for wireless open/close monitoring, security applications and building or industrial automation. It detects door status and can report open and close events, opening statistics and alarm conditions to an IoT platform over LoRaWAN. The DS03A-LS supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with an IN865 frequency option, it is suitable for long-term outdoor door and access monitoring deployments in India.

₹ 7,900.00 7900.0 INR ₹ 7,900.00

₹ 7,900.00

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Solar panel + 3000mAh Li-ion rechargeable battery
  • Designed for long-term outdoor deployment (up to 5 years)
  • Weatherproof industrial enclosure
  • Door open/close detection with statistics
  • Reports open duration and open counts
  • Configurable open duration alarm feature
  • Datalog feature for offline data storage
  • Periodic uplink (default every 2 hours) + event-based reporting
  • BLE v5.1 configuration support
  • Wireless OTA firmware updates
  • Downlink support for remote configuration
  • Supports IN865 band
  • Wall mountable design

Common DC Characteristics

  • Supply Voltage: Built-in battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to 85°C

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Battery (DS03A-LS Variant)

  • Power Source: Solar panel
  • Battery Type: 3000mAh Li-ion rechargeable battery
  • Designed for extended outdoor operation

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Frequency Bands

  • IN865

Package Includes

  • 1 x DS03A-LS Door Sensor

The Dragino DS03A-LS LoRaWAN® Outdoor Door Sensor is suitable for:

  • Industrial automation and factory perimeter monitoring
  • Commercial infrastructure and warehouse security
  • Water systems and utility control enclosures
  • Cold chain storage and logistics facilities
  • Manufacturing plants and equipment rooms
  • Infrastructure and smart city monitoring projects
  • Campuses, institutions, and large outdoor facilities
  • Remote outdoor gates, cabinets, and panel monitoring

You can purchase the genuine Dragino DS03A-LS LoRaWAN® Outdoor Door Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering nationwide shipping and project-level supply support.

Yes, the DS03A-LS is designed specifically for outdoor use with a weatherproof enclosure and solar-powered battery system. It supports the IN865 band, making it suitable for LoRaWAN® networks across India.

The DS03A-LS uses a solar panel with a 3000mAh Li-ion battery, reducing maintenance and enabling long-term outdoor operation without frequent battery replacement.
