Dragino DDS04-LB 4-Channel LoRaWAN Ultrasonic Distance Sensor (Excluding Sensors)

https://www.aiotkart.com/web/image/product.template/17649/image_1920?unique=163a2f0

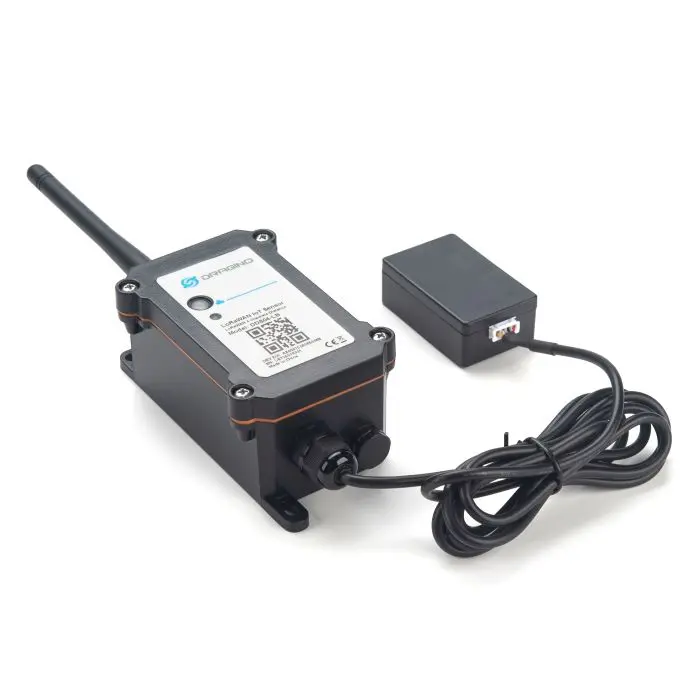

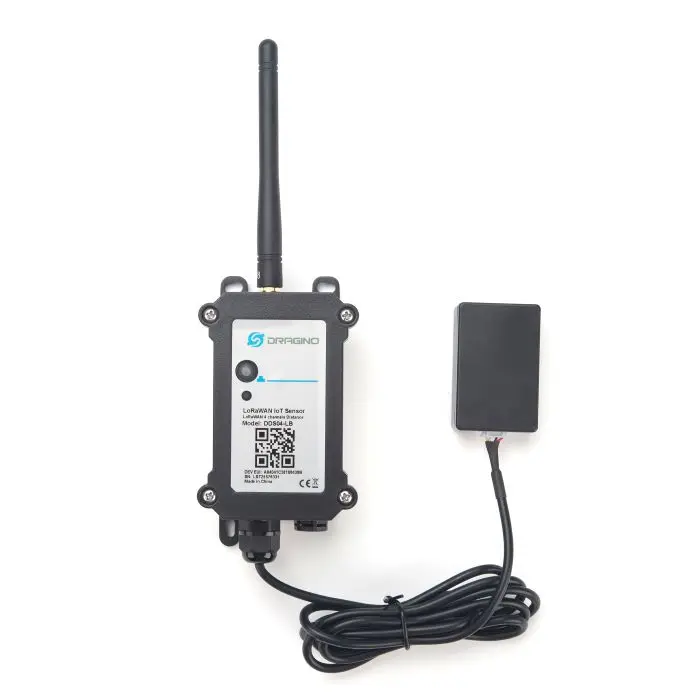

Dragino DDS04-LB is a 4-channel LoRaWAN® ultrasonic distance sensor controller designed to connect up to four external ultrasonic sensors for simultaneous multi-point distance measurement. It collects distance data from connected probes and transmits the readings to a LoRaWAN IoT server, making it suitable for liquid level monitoring, parking systems, smart waste management, sewer monitoring, object detection and industrial automation. The DDS04-LB supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP66 waterproof enclosure, 8500mAh Li-SOCl2 battery and IN865 frequency support, it is well suited for long-term outdoor IoT deployments in India.

₹ 8,100.00 8100.0 INR ₹ 8,100.00

₹ 8,100.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • Supports up to 4 external ultrasonic sensors (simultaneous measurement)
  • LoRaWAN® 1.0.3 Class A compliant
  • Compatible with IN865 and global frequency bands
  • Ultra-low power consumption design
  • BLE (Bluetooth v5.1) configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware updates
  • AT command configuration
  • IP66 waterproof enclosure for outdoor use
  • Long battery life (up to 5 years depending on configuration)

Common DC Characteristics

  • Supply Voltage: Built-in battery, 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C

LoRa Specifications

  • Frequency Range (HF Band): 862 ~ 1020 MHz
  • Bands Supported: IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Battery (DDS04-LB)

  • Type: Li/SOCl₂ (Non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Solar Version (DDS04-LS)

  • Solar Panel
  • 3000mAh Li-ion rechargeable battery

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode:
    • 125mA @ 20dBm
    • 82mA @ 14dBm

Mechanical

  • Enclosure: IP66 waterproof
  • Package Dimensions: 150 × 120 × 55 mm
  • Weight: 220g

The DDS04-LB/LS is ideal for:

  • Horizontal distance measurement
  • Liquid level monitoring
  • Parking management systems
  • Object proximity & presence detection
  • Intelligent trash bin monitoring
  • Robot obstacle avoidance
  • Sewer monitoring systems
  • Bottom water level monitoring
  • Industrial automation & smart control

No. This listing is for the DDS04-LB/LS controller only. Ultrasonic sensors must be purchased separately.

Up to four ultrasonic sensors can be connected for simultaneous distance measurement.

Yes. The device features an IP66 waterproof enclosure designed for harsh environments.
