Dragino BH01-LB BLE to LoRaWAN Hub

Price:

₹ 6,160.00
  2. Shop
  3. Dragino BH01-LB BLE to LoRaWAN Hub
Dragino LHT65S-E5 LoRaWAN Temperature, Humidity & Illuminance Sensor
Dragino LHT65S-E5 LoRaWAN Temperature, Humidity & Illuminance Sensor
₹ 5,240.00
₹ 5,240.00
Dragino AQS01-L LoRaWAN CO2 Air Quality Sensor
Dragino AQS01-L LoRaWAN CO2 Air Quality Sensor
₹ 10,500.00
₹ 10,500.00

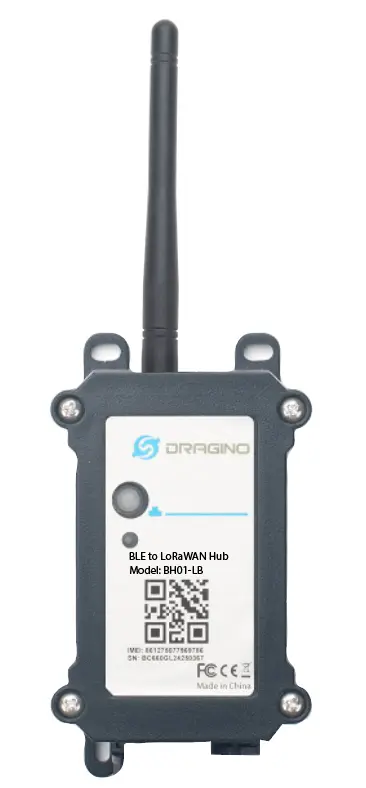

Dragino BH01-LB BLE to LoRaWAN Hub

https://www.aiotkart.com/web/image/product.template/18404/image_1920?unique=5b8a360

Dragino BH01-LB is a BLE to LoRaWAN® Hub designed to collect data from nearby Bluetooth sensors and transmit it over long-range LoRaWAN networks for remote IoT monitoring. It periodically scans compatible BLE devices, including Bluetooth temperature and humidity sensors and third-party BLE tags, combining short-range Bluetooth connectivity with the wide-area coverage of LoRaWAN. The BH01-LB supports Bluetooth 5.1, LoRaWAN 1.0.3 Class A communication, remote configuration and wireless OTA firmware updates, while its ultra-low-power design and 8500mAh Li-SOCl2 battery support long-term deployments. With an IN865 frequency option available, it is well suited for cold-chain monitoring, smart agriculture, asset monitoring and distributed environmental sensing applications in India.

₹ 6,160.00 6160.0 INR ₹ 6,160.00

₹ 6,160.00

Not Available For Sale

(₹ 0.00 / UNIT)
10 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A
  • Bands: IN865
  • Ultra-low power consumption
  • Data collcetion: Bluetooth tags monitor environmental parameters in real time and upload data to the Hub via BLE protocol
  • Combines BLE’s short-range precision with LoRaWAN®’s Long range transmission
  • Monitor Battery Level
  • Support Bluetooth v5.1 and LoRaWAN® remote configure
  • Support wireless OTA update firmware
  • Uplink on periodically
  • Downlink to change configure
  • 8500mAh Li/SOCl2 Battery (BH01-LB)
  • Solar panel + 3000mAh Li-ion battery (BH01-LS)

DR-TAH02:

  • Bluetooth version: Bluetooth LE 5.1 protocol
  • Shell material: PET composite plastic bag (heat sealed)
  • Temperature range: -40°C ~ +85°C, ±0.3°C
  • Waterproof level: IP67
  • Battery capacity: 600mAh
  • Working temperature: -40°C ~ +60°C
  • Battery specification: CR2450
  • Data storage: 512 records
  • Battery life: 3 years (varies with the transmission power and broadcast
  • frequency settings)
  • Transmit power: -19.5dBm ~ +2.5dBm (configurable)
  • Broadcast frequency: 500ms (configurable)
  • Sampling frequency: 5min/time (configurable)
  • Broadcast power consumption: 22uA (varies with the transmission
  • power and broadcast frequency settings)
  • Broadcast mode: Custom Sensor broadcast
  • Broadcast distance: 100m (varies with the transmission power setting)
  • Configuration APP: nRF connect (Android / IOS)

DR-ES01:

  • Bluetooth version: Bluetooth LE 5.3 protocol
  • Casing material: PC material
  • Temperature range: 0°C ~ +85°C, ±0.2°C
  • Waterproof level: IP65
  • Battery capacity: 1100mAh
  • Working temperature: 0°C ~ +85°C
  • Battery specification: AAA LR03 x2
  • Battery life: 3 years (varies with the transmission power and broadcast
  • frequency settings)
  • Transmit power: -20dBm ~ +4dBm (configurable)
  • Broadcast frequency: 1000ms (configurable)
  • Humidity range: 0~100%RH, ±2%RH
  • Broadcast power consumption: 34uA (varies with the transmission
  • power and broadcast frequency settings)
  • Supported system: Android 4.3 / IOS7.0 and above
  • Broadcast mode: Custom Sensor broadcast
  • Broadcast distance: 100m (varies with the transmission
  • power setting)
  • Configuration APP: nRF connect (Android / IOS)
  • Supported system: Android 4.3 / IOS7.0 and above
  • Cold Chain Logistics
  • Smart Factory Monitoring
  • Warehouse Monitoring
  • Greenhouse Monitoring

The Dragino BH01-LB/LS is a BLE to LoRaWAN® Hub designed to connect Bluetooth Low Energy (BLE) sensors with a LoRaWAN® network. It periodically scans nearby compatible Bluetooth sensors, collects sensor data such as temperature and humidity, and transmits the data over long distances using LoRaWAN®. This makes it suitable for IoT applications where BLE sensors need reliable long-range connectivity to an IoT platform or cloud system.

The BH01-LB/LS Bluetooth to LoRaWAN Hub can be used for applications such as cold chain monitoring, warehouse temperature monitoring, smart agriculture, environmental monitoring, asset tracking, and smart infrastructure monitoring. By combining the short-range flexibility of BLE sensors with the long-range, low-power connectivity of LoRaWAN, it enables multiple IoT monitoring applications without requiring Wi-Fi connectivity at every sensor location.

Yes. The Dragino BH01-LB/LS supports the IN865 LoRaWAN frequency band, making it suitable for compatible LoRaWAN IoT deployments in India. It is available as the BH01-LB with an 8500mAh Li-SOCl2 battery and the BH01-LS with a solar panel and 3000mAh Li-ion battery. The device also supports Bluetooth-based configuration, LoRaWAN remote configuration, battery monitoring, and wireless OTA firmware updates.

Documents

User Manual
Download

Data Sheet

Download

Shared Folder for all Dragino Products

Download
