Dragino AIS01-LB LoRaWAN AI Image Recognition End Node

https://www.aiotkart.com/web/image/product.template/17632/image_1920?unique=b5ac78a

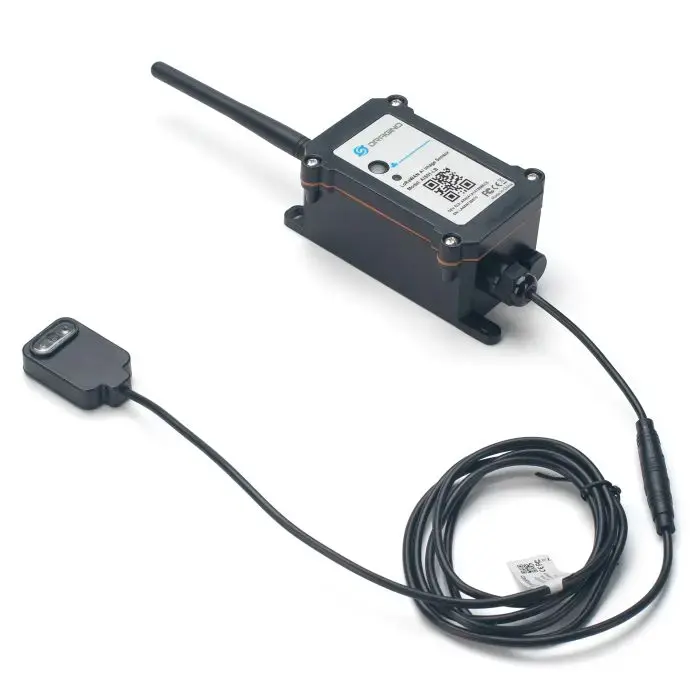

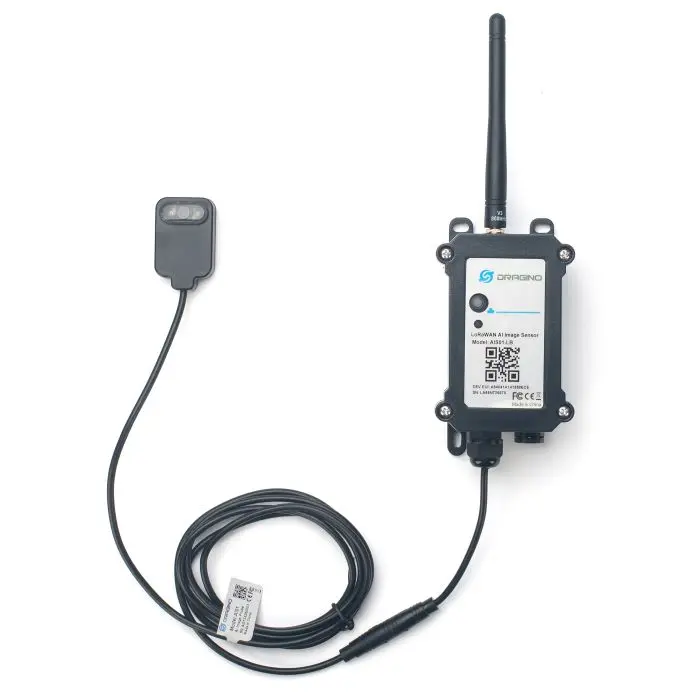

Dragino AIS01-LB is a LoRaWAN® AI Image Recognition End Node designed to convert visual meter readings into digital IoT data. It combines a camera and onboard AI processor to capture images, recognize numerical readings and transmit the interpreted values to an IoT server over LoRaWAN. The AIS01-LB is pre-trained for common water meter, gas meter and power meter readings and can also transmit the captured image when required. It supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for remote meter-reading and visual monitoring applications in India.

₹ 8,600.00 8600.0 INR ₹ 8,600.00

₹ 8,600.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® v1.0.3 Class A protocol compliant
  • Integrated AI Image Recognition sensor
  • Captures and analyzes meter images locally
  • Recognizes digits from water, gas & power meters
  • Option to transmit digital data and original image
  • Supports Bluetooth v5.1 for configuration
  • Remote configuration via LoRaWAN ®
  • Wireless OTA firmware update support
  • 8500mAh Li/SOCl2 long-life battery
  • Ultra-low power consumption design
  • Interrupt uplink support
  • Periodic uplink and configurable downlink
  • AT commands for parameter configuration
  • Band support: IN865
Power Supply
  • Built-in Battery: 2.5V ~ 3.6V
  • Battery Type: Li/SOCl2 (Non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)
Power Consumption
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm
  • 82mA @ 14dBm
Operating Conditions
  • Operating Temperature: -40°C to 85°C
Image Sensor (Camera)
  • Type: Mono (Black & White)
  • Viewing Angle: 110°
  • Image Size: 64KB
  • Resolution: 640 x 480
LoRa Specifications
  • Frequency Range (Band 1 HF): 862 ~ 1020 MHz
  • Max RF Output: +22 dBm constant
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity
Package Includes
  • AIS01-LB LoRaWAN® AI Image End Nod

The Dragino AIS01-LB LoRaWAN® AI Image End Node is ideal for:

  • Industrial automation meter monitoring
  • Commercial infrastructure energy tracking
  • Water distribution and municipal water systems
  • Gas utilities and pipeline monitoring
  • Electricity metering in manufacturing plants
  • Cold chain facilities energy monitoring
  • Smart utilities and public infrastructure projects
  • Campuses, institutions, and smart city deployments

It enables automated remote reading of water meters, gas meters, and electricity meters without manual intervention.

You can buy the Dragino AIS01-LB LoRaWAN® AI Image End Node directly from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India delivery and institutional support.

The device captures meter images using its onboard camera, processes them locally with its AI engine to extract digital readings, and transmits the data via LoRaWAN® to an IoT server. It can also send the original image for verification.

Yes, the AIS01-LB is suitable for Industrial LoRaWAN® deployments across India, including water utilities, gas distribution, energy monitoring, and infrastructure automation projects.
